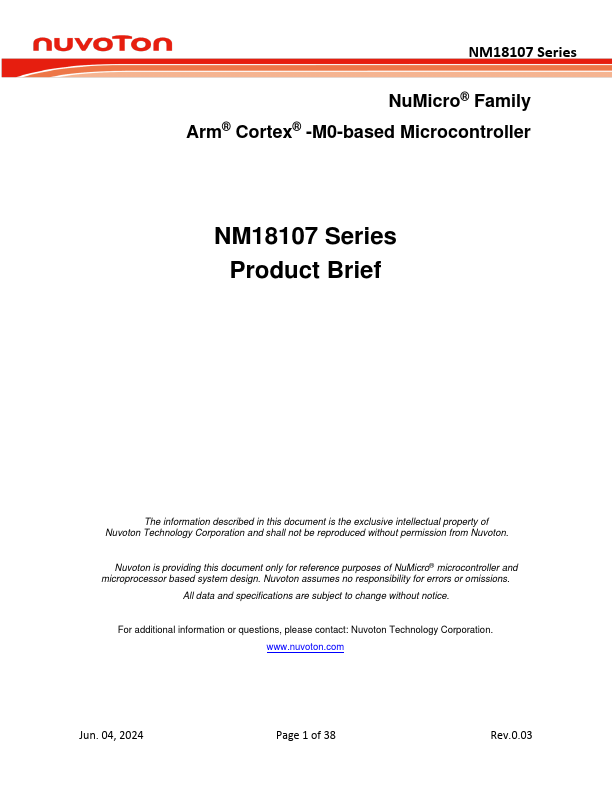

NM18107 Series Nu Micro® Family Arm® Cortex® -M0-based Microcontroller NM18107 Series Product Brief The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of Nu Micro® microcontroller and microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions. All data and specifications are subject to change without notice. For additional information or questions, please contact: Nuvoton Technology Corporation. .nuvoton. Jun. 04, 2024 Page 1 of 38 Rev.0.03 NM18107 Series 1 GENERAL DESCRIPTION The NM18107 series 32-bit microcontroller(MCU) is embedded with ARM® Cortex™-M0 core and monolithic half-bridge gate driver for motor driver applications which require high performance, high integration, and low cost. The Cortex™-M0 is the ARM® embedded processor with 32-bit performance at a cost equivalent to the traditional 8-bit microcontroller. The MCU of NM18107 series can run up to 48 MHz and offers 29.5K-bytes embedded program flash, size configurable Data Flash (shared with program flash), 2K-byte flash for the ISP, 1.5Kbyte SPROM for security, and 4K-byte SRAM. Plentiful system level peripheral functions, such as I/O Port, Timer, UART, SPI, I2C, PWM, ADC, Watchdog Timer, Analog parator and Brownout Detector, have been incorporated into the NM18107 series in order to reduce ponent count, board space and system cost. These useful functions make the NM18107 series powerful for a wide range of motor driver applications. The power supply input of NM18107 is up to 35V. The UVLO circuits prevent malfunction when VCC is lower than the specified threshold voltage. It also build-in bootstrap diodes that can reduce output ponent. Additionally, the NM18107 series is equipped with ISP (In-System Programming) and ICP (In Circuit Programming) functions, which...
