ACE2302

N-Channel Enhancement Mode MOSFET

ACE2302 Features

* 20V/3.6A, RDS(ON)=80mΩ@VGS=4.5V 20V/3.1A, RDS(ON)=95mΩ@VGS=2.5V Super high density cell design for extremely low RDS(ON) Exceptional on-resistance and maximum DC current capability Applic

ACE2302 General Description

N-Channel Enhancement Mode MOSFET The ACE2302 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited.

ACE2302 Datasheet (224.73 KB)

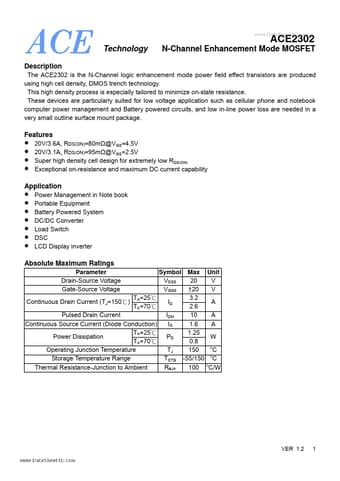

Preview of ACE2302 PDF

Datasheet Details

Part number:

ACE2302

Manufacturer:

ACE Technology

File Size:

224.73 KB

Description:

N-channel enhancement mode mosfet.
