ACE2304

N-Channel Enhancement Mode MOSFET

ACE2304 Features

* 30V/3.2A, RDS(ON)=65mΩ@VGS=10V 30V/2.0A, RDS(ON)=90mΩ@VGS=4.5V Super high density cell design for extremely low RDS(ON) Exceptional on-resistance and maximum DC current capability Applica

ACE2304 General Description

N-Channel Enhancement Mode MOSFET The ACE2304 is the N-Channel logic enhancement mode power field effect transistor are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited .

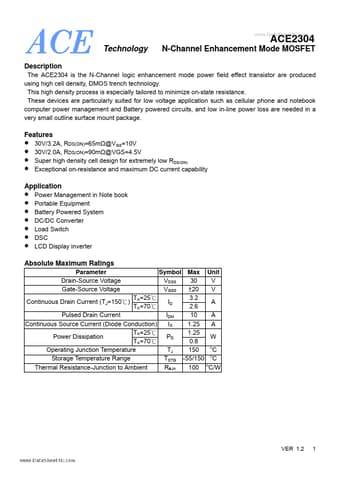

ACE2304 Datasheet (276.79 KB)

Preview of ACE2304 PDF

Datasheet Details

Part number:

ACE2304

Manufacturer:

ACE Technology

File Size:

276.79 KB

Description:

N-channel enhancement mode mosfet.
