AWS5502-S14 Datasheet, Ghz, ANADIGICS Inc

AWS5502-S14 Features

  • Ghz • Low Insertion Loss (0.4 dB @ 0.9 GHz) • Complementary Positive Control Voltages (0/+3V to 0/+5V) • Positive Voltage Supply (+3 to +5 V) • Low DC Power Consumption • Ultra Miniature 6

PDF File Details

Part number:

AWS5502-S14

Manufacturer:

ANADIGICS Inc

File Size:

303.58kb

Download:

📄 Datasheet

Description:

Gaas ic spdt reflective switch positive control dc - 2.5 ghz. The AWS5502 is a Single Pole Double Throw GaAs MMIC Switch assembled in a SOT-6 plastic package. The AWS5502 is designed for analog a

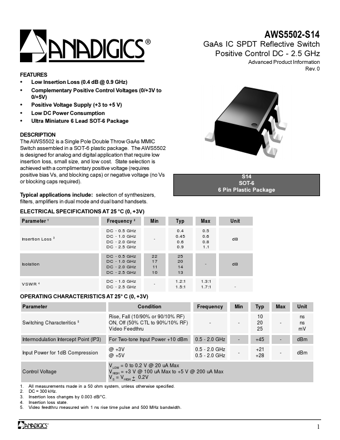

Datasheet Preview: AWS5502-S14 📥 Download PDF (303.58kb)
Page 2 of AWS5502-S14 Page 3 of AWS5502-S14

AWS5502-S14 Application

  • Applications include: selection of synthesizers, filters, amplifiers in dual mode and dual band handsets. ELECTRICAL SPECIFICATIONS AT 25 °C (0, +3V
