AWS5504 Datasheet, Switch, ANADIGICS

AWS5504 Features

  • Switch
  • High Linearity (IP3 48 dBm @ 0.9 GHz) Low Insertion Loss (0.4 dB @ 0.9 GHz) 2.75 V to -3.5 to +2.75 operation Low DC Power Co

PDF File Details

Part number:

AWS5504

Manufacturer:

ANADIGICS

File Size:

99.37kb

Download:

📄 Datasheet

Description:

Gaas ic negative control spdt reflective switch. The AWS5504 is a Single Pole Double Throw (SPDT) GaAs MMIC switch assembled in a SOT-6 plastic package. The AWS5504 is designed for a

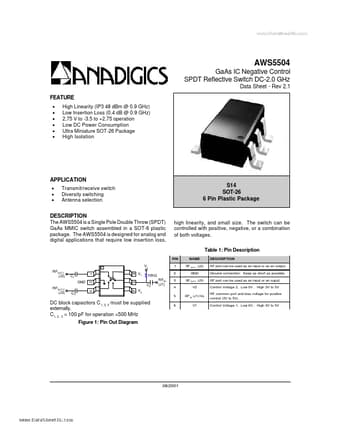

Datasheet Preview: AWS5504 📥 Download PDF (99.37kb)
Page 2 of AWS5504 Page 3 of AWS5504

AWS5504 Application

  • Applications
  • Transmit/receive switch Diversity switching Antenna selection S14 SOT-26 6 Pin Plastic Package DESCRIPT
