AWS5503

GaAs IC High Power SPDT Reflective Switch Positive Controller

AWS5503 Features

* High Linearity (IP3 55 dBm @ 1.9 GHz) High Isolation (20 dB @ 1.9 GHz) Low Insertion Loss (0.55 dB @ 1.9 GHz) Low DC Power Consumption Positive 3V or 5V Control Voltage AWS5503 APPLICATIONNS

* Typical applications include: transmit/ receive switch, diversity switc

AWS5503 General Description

The AWS5503 is a Single Pole Double Throw (SPDT) GaAs MMIC assembled in a MSOP-8 plastic package. The AWS5503 is designed for analog and digital applications that require low insertion loss, high linearity, and small size. State selection is achieved with positive voltage. Table 1: Pin Description.

AWS5503 Datasheet (208.55 KB)

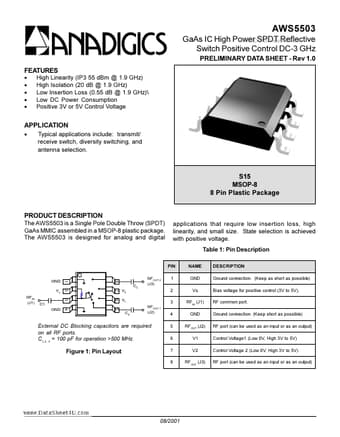

Preview of AWS5503 PDF

Datasheet Details

Part number:

AWS5503

Manufacturer:

ANADIGICS

File Size:

208.55 KB

Description:

Gaas ic high power spdt reflective switch positive controller.
