AWS5508

SP4T PHEMT Transmit/Receive Antenna Switch

AWS5508 Features

* 2.7V Control Operation Tri-band Operation High Isolation High Power High Linearity Small Leadless Package SP4T Antenna switch operating in the GSM 900 MHz, DCS 1800 MHz, and PCS 1900 MHz bands ADVANCED PRODUCT INFORMA TION - Rev 0

AWS5508 General Description

The AWS5508 SP4T high power antenna switch is designed to operate in the GSM 900Mhz, DCS 1800MHz, and PCS 1900MHz frequency bands. All 4 ports of the switch have identical electrical and linearity performance which allows flexibility in system design. Switching between ports is accomplished using 2..

AWS5508 Datasheet (136.98 KB)

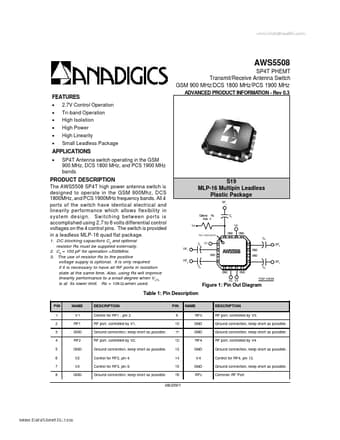

Preview of AWS5508 PDF

Datasheet Details

Part number:

AWS5508

Manufacturer:

ANADIGICS

File Size:

136.98 KB

Description:

Sp4t phemt transmit/receive antenna switch.
