AWS5503-S15

GaAs IC High Power SPDT Reflective Switch Positive Control DC - 3 GHz

AWS5503-S15 Features

* • High Linearity (IP3 55 dBm @ 1.9 GHz) • High Isolation (20 dB @ 1.9 GHz) • Low Insertion Loss (0.55 dB @ 1.9 GHz) • Low DC Power Consumption • Positive 3V or 5V Control Voltage GaAs IC High Power SPDT Reflective Switch Positive Control DC - 3 GHz Advanced Product Information Rev. 0 AWS5503-S15

AWS5503-S15 General Description

The AWS5503 is a Single Pole Double Throw (SPDT) GaAs MMIC assembled in a MSOP-8 plastic package. The AWS5503 is designed for analog and digital applications that require low insertion loss, high linearity, and small size. State selection is achieved with positive voltage. Typical applications inclu.

AWS5503-S15 Datasheet (306.48 KB)

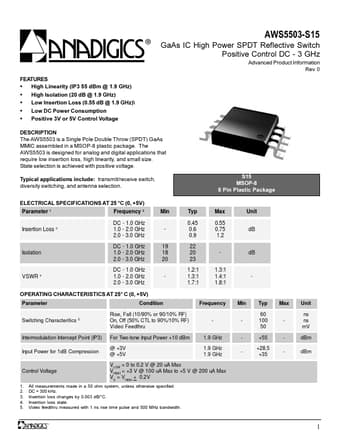

Preview of AWS5503-S15 PDF

Datasheet Details

Part number:

AWS5503-S15

Manufacturer:

ANADIGICS Inc

File Size:

306.48 KB

Description:

Gaas ic high power spdt reflective switch positive control dc - 3 ghz.
