AWS5502

GaAs IC SPDT Reflective Switch Positive Controller

AWS5502 Features

* • • • • • • • • AWS5502 PRELIMINARY DATA SHEET - Rev 1.0 Low Insertion Loss (0.4 dB @ 0.9 GHz) Complementary Positive Control Voltages (0/ +3V to 0/+5V) Positive Voltage Supply (+3 to +5 V) Low DC Power Consumption Ultra Miniature 6 Lead SOT-6 Package APPLICATIONS Selection of Synthesizers Filte

AWS5502 General Description

The AWS5502 is a Single Pole Double Throw GaAs MMIC Switch assembled in a SOT-6 plastic package. The AWS5502 is designed for analog and digital application that require low insertion loss, small size, and low cost. State selection is achieved with a complimentary positive voltage (requires positiv.

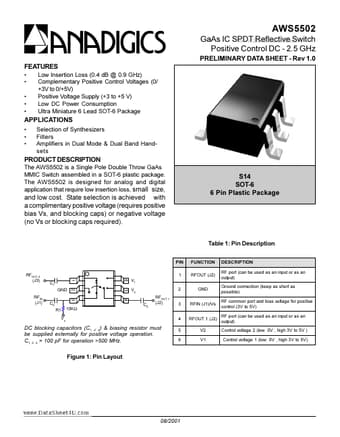

AWS5502 Datasheet (219.33 KB)

Preview of AWS5502 PDF

Datasheet Details

Part number:

AWS5502

Manufacturer:

ANADIGICS

File Size:

219.33 KB

Description:

Gaas ic spdt reflective switch positive controller.
