AWS5506 Datasheet - ANADIGICS

GaAs IC SPDT Reflective Switch Positive Controller

AWS5506 Features

* Low Insertion Loss (0.4 dB @ 0.9 GHz) Complementary Positive Control Voltages (0/ +3V to 0/+5V) Positive Voltage Supply (+3 to +5 V) Low DC Power Consumption Ultra Miniature 6 Lead SOT-6 Package APPLICATIONS

* Typical applications include: s

AWS5506 General Description

The AWS5506 is a Single Pole Double Throw GaAs MMIC switch assembled in a SOT-6 plastic package. The AWS5506 is designed for analog and digital application that require for insertion loss, small size, and low cost. State selection is achieved with a complimentary positive voltage (requires positive .

AWS5506 Datasheet (91.35 KB)

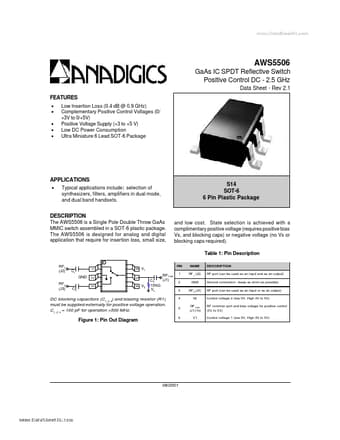

AWS5506 Datasheet Preview — Preview of AWS5506 PDF

Datasheet Details

Part number:

AWS5506

Manufacturer:

ANADIGICS

File Size:

91.35 KB

Description:

Gaas ic spdt reflective switch positive controller.
