AWS5506S14 Datasheet - ANADIGICS Inc

GaAs IC SPDT Reflective Switch Positive Control DC - 2.5 GHz

AWS5506S14 Features

* Low Insertion Loss (0.4 dB @ 0.9 GHz) Complementary Positive Control Voltages (0/ +3V to 0/+5V) Positive Voltage Supply (+3 to +5 V) Low DC Power Consumption Ultra Miniature 6 Lead SOT-6 Package

* APPLICATIONS Typical applications include: selection of synthesizer

AWS5506S14 General Description

The AWS5506 is a Single Pole Double Throw GaAs MMIC switch assembled in a SOT-6 plastic package. The AWS5506 is designed for analog and digital application that require for insertion loss, small size, and low cost. State selection is achieved with a complimentary positive voltage (requires positive .

AWS5506S14 Datasheet (176.35 KB)

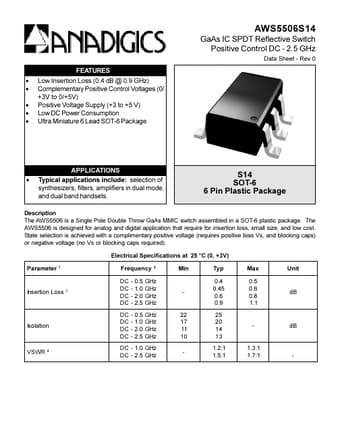

AWS5506S14 Datasheet Preview — Preview of AWS5506S14 PDF

Datasheet Details

Part number:

AWS5506S14

Manufacturer:

ANADIGICS Inc

File Size:

176.35 KB

Description:

Gaas ic spdt reflective switch positive control dc - 2.5 ghz.
