SUR552J - Epitaxial planar PNP/NPN silicon transistor

Name: SUR552J
SKU: SUR552J-1092195

AUK

The SUR552J by AUK is a Epitaxial planar PNP/NPN silicon transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SUR552J
Manufacturer	AUK
File Size	267.53 KB
Description	Epitaxial planar PNP/NPN silicon transistor
Datasheet	SUR552J-AUK.pdf

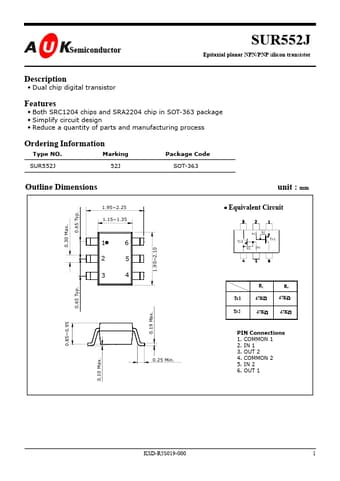

Additional preview pages of the SUR552J datasheet.

Dual chip digital transistor

Both SRC1204 chips and SRA2204 chip in SOT-363 package.
Simplify circuit design.
Reduce a quantity of parts and manufacturing process Ordering Information Type NO. Marking Package Code SUR552J 52J SOT-363 Outline Dimensions unit : mm 0.30 Max. 0.65 Typ. 1.95~2.25 1.15~1.35 16 25 34 1.90~2.10.
Equivalent Circuit R2 R1 Tr2 R2 R1 Tr1 R1 R2 Tr1 47KΩ 47KΩ Tr2 47KΩ 47KΩ 0.65 Typ. 0.19 Max. 0.85~0.95 0.25 Min. PIN Connections 1. COMMON 1.
