AP15NA9R3CXT - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP15NA9R3CXT Description

Advanced Power Electronics Corp.AP15NA9R3CXT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive R.
AP15NA9R3C series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switch.

AP15NA9R3CXT Applications

* The PMPAK ® 5x6X package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 150V 9.3mΩ D D D D S S S G PMPAK® 5x6X Absolute Symbol Maximum RatingPsa@ramTejt=er25o. C(unless otherwise specified) Rati

📥 Download Datasheet

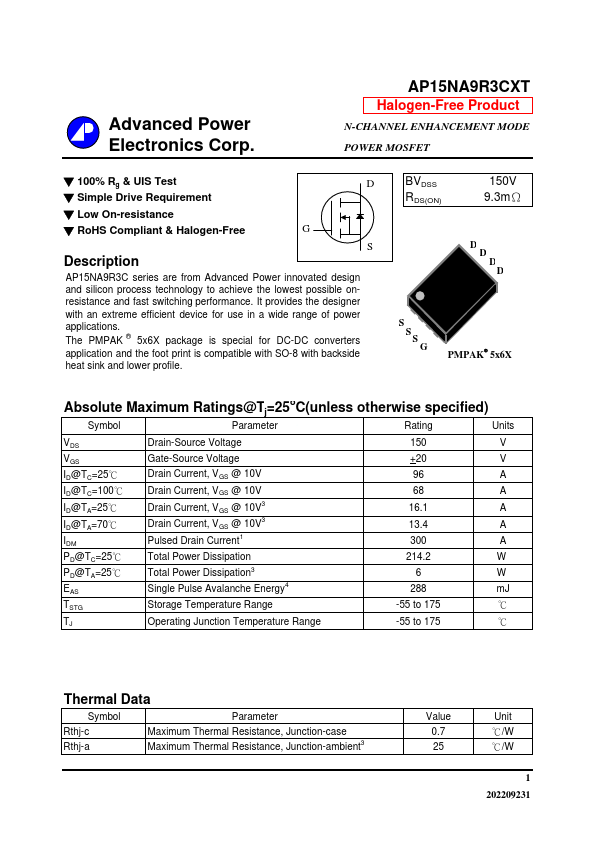

Preview of AP15NA9R3CXT PDF

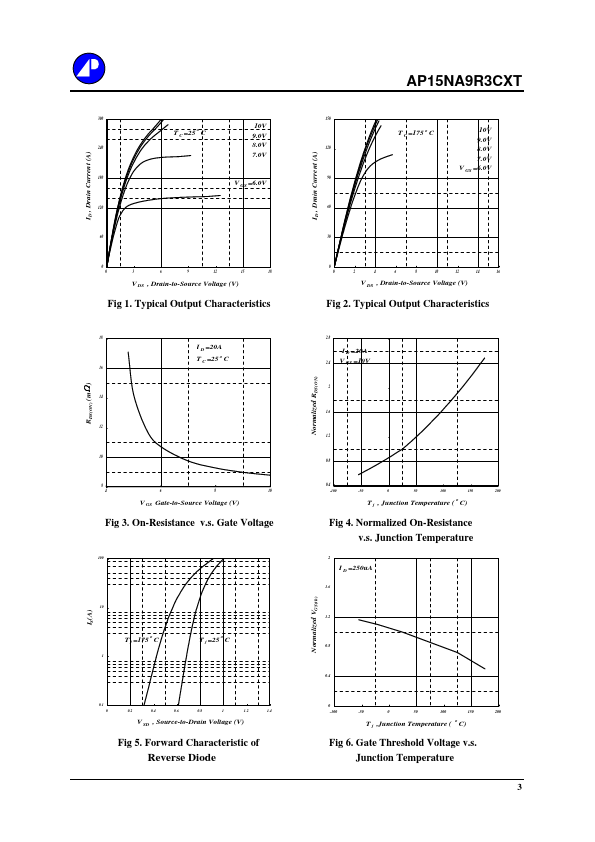

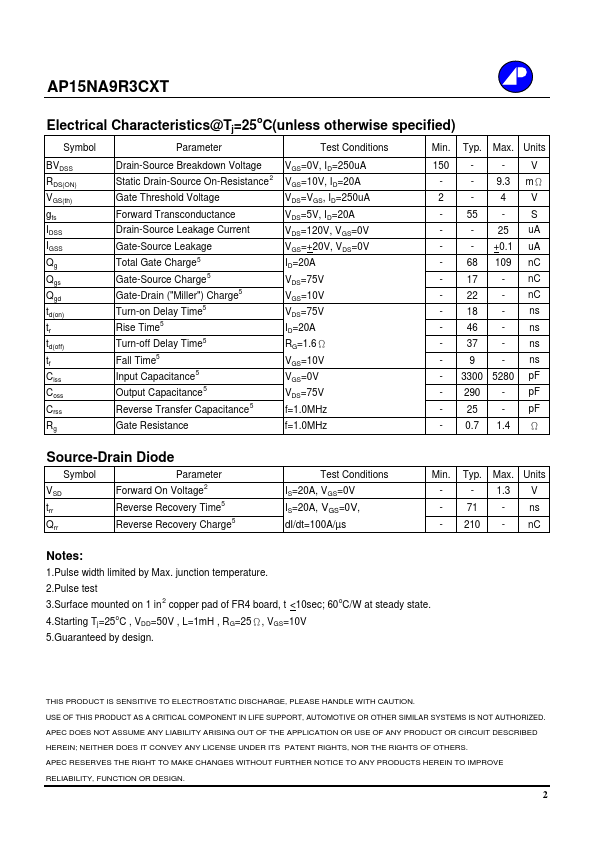

datasheet Preview Page 2 datasheet Preview Page 3
