AM2300

20V N-CHANNEL ENHANCEMENT MODE MOSFET

AM2300 Features

* The AM2300 is the N-Channel logic enhancement mode power field effect transistor is produced using high cell density. Advanced trench technology to provide excellent RDS(ON). This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for

AM2300 Datasheet (333.18 KB)

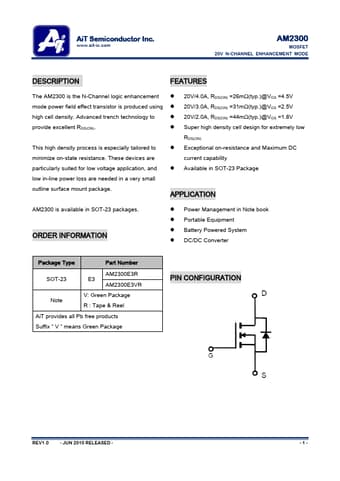

Preview of AM2300 PDF

Datasheet Details

Part number:

AM2300

Manufacturer:

AiT Semiconductor

File Size:

333.18 KB

Description:

20v n-channel enhancement mode mosfet.
