AFN7002KAS

N-Channel MOSFET

AFN7002KAS Features

* 60V/0.5A , RDS(ON)=2.4Ω@VGS=10V 60V/0.3A , R DS(ON)=3.0Ω@VGS=4.5V Super high density cell design for extremely low RDS(ON) Exceptional on-resistance and maximum DC current capability ESD Protection ( 2KV ) Diode design

* in SOT-23 package design Application Drivers: Relays, Solenoids, Lamps,

AFN7002KAS General Description

AFN7002KAS, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, such as smart phone and notebook computer and other battery powered circuits, and low in-line power lo.

AFN7002KAS Datasheet (735.40 KB)

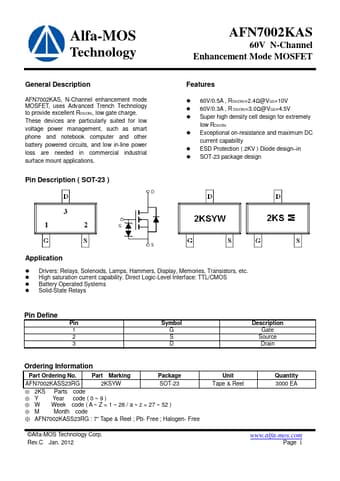

Preview of AFN7002KAS PDF

Datasheet Details

Part number:

AFN7002KAS

Manufacturer:

Alfa-MOS

File Size:

735.40 KB

Description:

N-channel mosfet.
