AFN7002DS 60V N-Channel MOSFET

AFN7002DS, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, such as smart phone and notebook computer, and low in-line power loss are needed in commercial industri.

AFN7002DS Features

* 60V/0.5A,RDS(ON)=3000mΩ@VGS=10V

* 60V/0.3A,RDS(ON)=4000mΩ@VGS=5V

* Low Offset (Error) Voltage

* Low-Voltage Operation

* High-Speed Circuits

* Low Battery Voltage Operation

* ESD ( 1KV ) Protected

* SOT-363 package design Application

* Drivers: Relays, Solenoids

AFN7002DS-Alfa-MOS.pdf

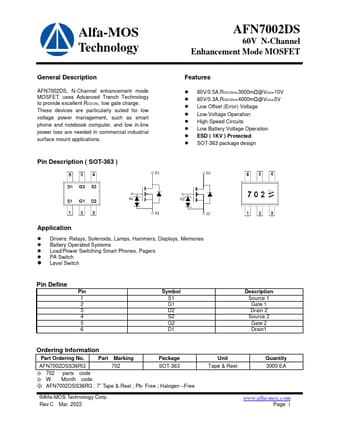

AFN7002DS Datasheet Preview — This datasheet PDF includes multiple part numbers: AFN7002DS, AFN7002DS-Alfa. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AFN7002DS, AFN7002DS-Alfa

Manufacturer:

Alfa-MOS

File Size:

265.77 KB

Description:

60v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: AFN7002DS, AFN7002DS-Alfa.
Please refer to the document for exact specifications by model.
