AS4C128M16D3C-93BCN 128M x 16 bit DDR3 Synchronous DRAM

Alliance Semiconductor

Description

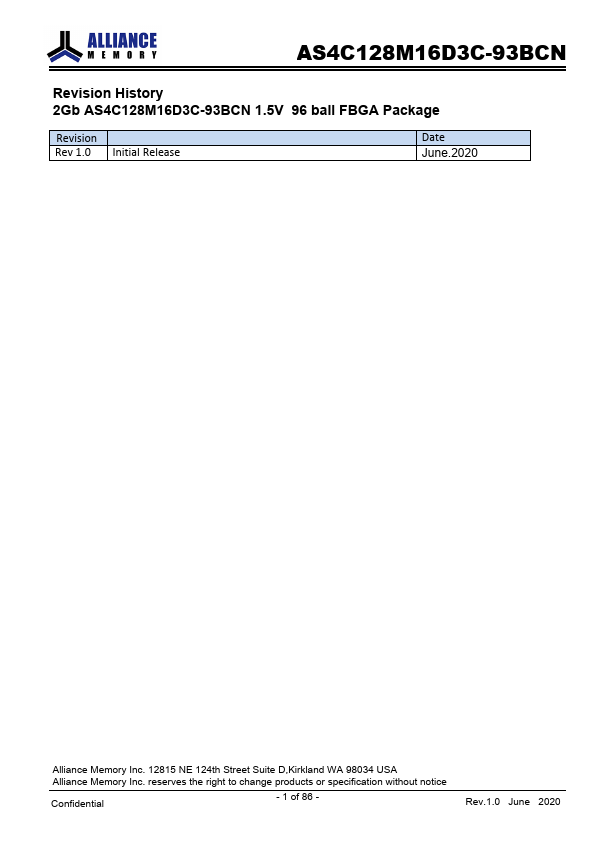

AS4C128M16D3C-93BCN Revision History 2Gb AS4C128M16D3C-93BCN 1.5V 96 ball FBGA Package Revision Rev 1.0 Initial Release Date June.2020 Alliance Me.

📥 Download Datasheet

AS4C128M16D3C-93BCN Datasheet Preview — Preview of AS4C128M16D3C-93BCN PDF

Datasheet Specifications

Part number: AS4C128M16D3C-93BCN
Manufacturer: Alliance Semiconductor
File Size: 1.87 MB
Datasheet: AS4C128M16D3C-93BCN-AllianceSemiconductor.pdf
Description: 128M x 16 bit DDR3 Synchronous DRAM

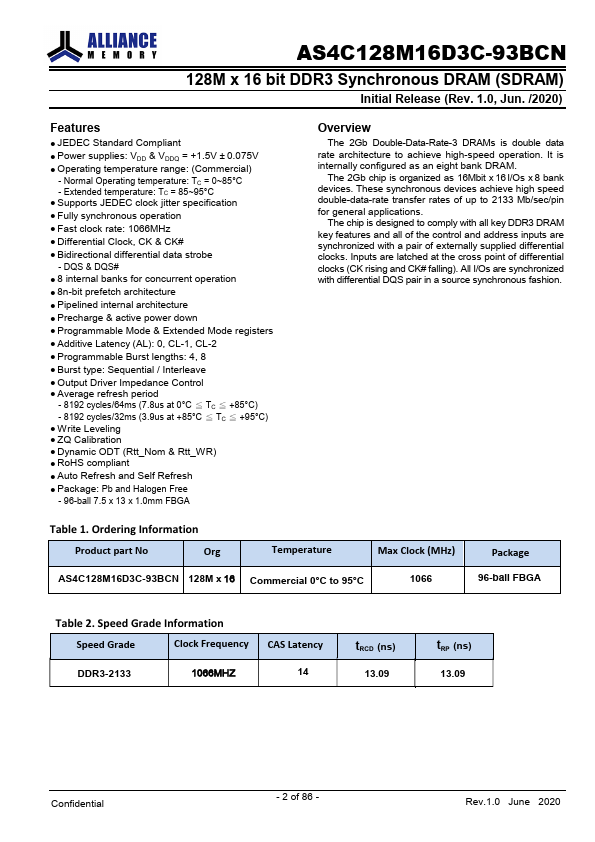

Features

* JEDEC Standard Compliant
* Power supplies: VDD & VDDQ = +1.5V ± 0.075V
* Operating temperature range: (Commercial) - Normal Operating temperature: TC = 0~85°C - Extended temperature: TC = 85~95°C
* Supports JEDEC clock jitter specification
* Fully synchronous operation
* Fa
