ASM5I961C, Low Voltage Zero Delay Buffer

July 2005 rev 0.2 Low Voltage Zero Delay Buffer .
The ASM5I961C is a 2.

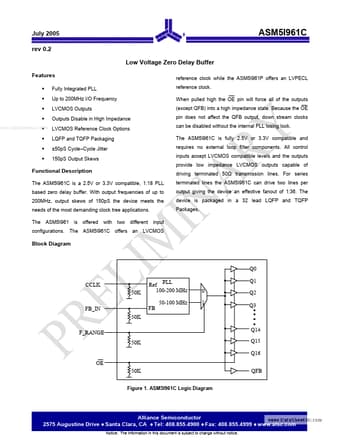

datasheet Preview Page 1 from Datasheet4u.com

ASM5I961C_AllianceSemiconductor.pdf

ASM5I961C Datasheet Preview — Preview of ASM5I961C PDF

Datasheet Details

Part number:

ASM5I961C

Manufacturer:

Alliance Semiconductor

File Size:

723.26 KB

Description:

Low Voltage Zero Delay Buffer

Features

* Fully Integrated PLL Up to 200MHz I/O Frequency LVCMOS Outputs Outputs Disable in High Impedance ASM5I961C reference clock while the ASM5I961P offers an LVPECL reference clock. When pulled high the OE pin will force all of the outputs (except QFB) into a high impedance stat

Applications

* The ASM5I961 is offered with two different configurations. The ASM5I961C offers an LVCMOS Block Diagram Q0 CCLK 50K FB_IN 50K F_RANGE 50K Q14 Q15 Q16 OE 50K Figure 1. ASM5I961C Logic Diagram PLL Ref 100-200 MHz FB 50-100 MHz Q1 0 1 Q2 Q3 QFB Alliance Semiconductor 2575 Augustine Drive
