AO3404A - N-Channel MOSFET

Alpha & Omega Semiconductors

Datasheet Details

Part number	AO3404A
Manufacturer	Alpha & Omega Semiconductors
File Size	359.55 KB
Description	N-Channel MOSFET
Datasheet	AO3404A-AlphaOmegaSemiconductors.pdf

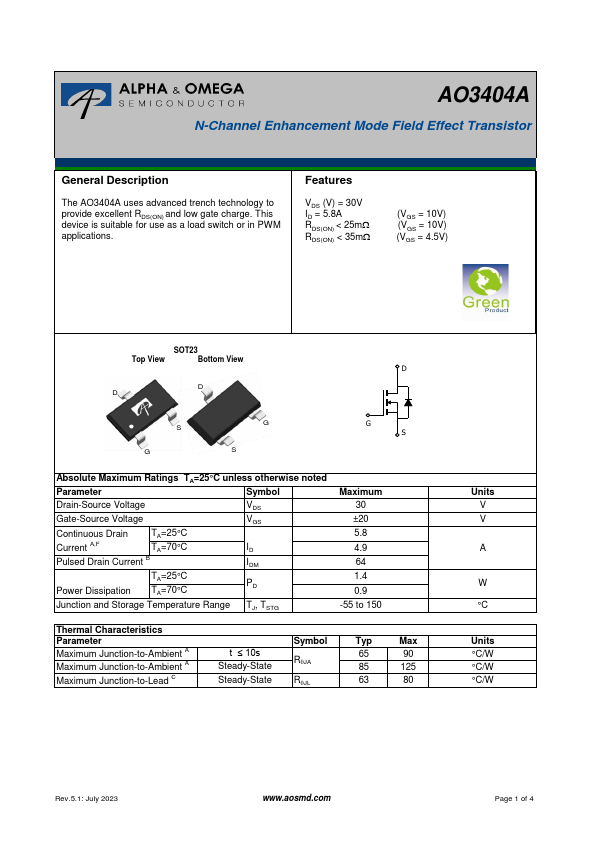

The AO3404A uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

VDS (V) = 30V ID = 5.8A RDS(ON) < 25mW RDS(ON) < 35mW (VGS = 10V) (VGS = 10V) (VGS = 4.5V) SOT23 Top View Bottom View D D D S G G S G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TA=25°C Current A,F TA=70°C ID Pulsed Drain Current B IDM Power Dissipation TA=25°C TA=70°C PD Junction and Storage Temperature Range TJ, TSTG Maximum 30 ±20 5.8 4.9 64 1.4 0.9 -55 to 150 Thermal.
