AON6764 - 30V N-Channel MOSFET

The AON6764 by Alpha & Omega Semiconductors is a 30V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

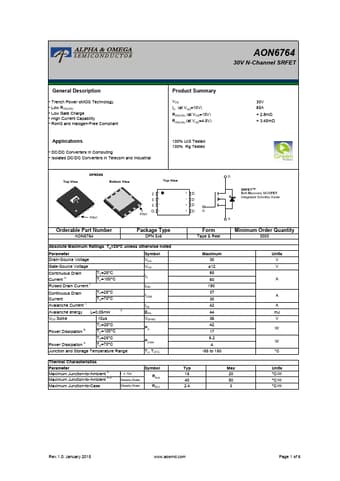

Official preview page of the AON6764 30V N-Channel MOSFET datasheet (Alpha & Omega Semiconductors).

Datasheet Details

Part number AON6764
Manufacturer Alpha & Omega Semiconductors
File Size 240.84 KB
Description 30V N-Channel MOSFET
Datasheet download datasheet AON6764-AlphaOmegaSemiconductors.pdf
Additional preview pages of the AON6764 datasheet.

AON6764 Product details

Description

Trench Power αMOS Technology Low RDS(ON) Low Gate Charge High Current Capability RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 30V 85A < 2.8mΩ < 3.45mΩ Applications DC/DC Converters in Computing Isolated DC/DC Converters in Telecom and Industrial 100% UIS Tested 100% Rg Tested Top View DFN5X6 Bottom View Top View PIN1 1 2 3 4 PIN1 8 7 6 5 G D SRFE
