Part number: AD9239
Manufacturer: Analog Devices (https://www.analog.com/)
File Size: 1.10MB
Download: 📄 Datasheet
Description: 170 MSPS/210 MSPS/250 MSPS Serial Output 1.8 V ADC
4 ADCs in 1 package Coded serial digital outputs with ECC per channel On-chip temperature sensor −95 dB channel-to-channel crosstalk SNR = 65 dBFS with AIN = 85 MHz at 25.
Communication receivers Cable head end equipment/M-CMTS Broadband radios Wireless infrastructure transceivers Radar/mili.

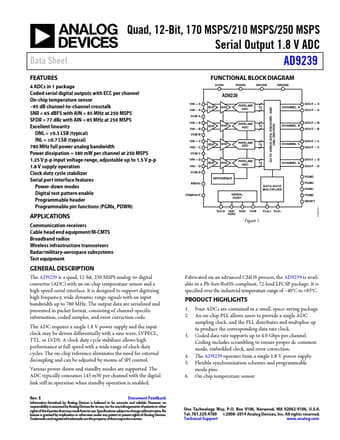

The AD9239 is a quad, 12-bit, 250 MSPS analog-to-digital converter (ADC) with an on-chip temperature sensor and a high speed serial interface. It is designed to support digitizing high frequency, wide dynamic range signals with an input bandwidth up .
