ADM2482E Datasheet, Transceivers, Analog Devices

ADM2482E Features

• Transceivers Isolated RS-485/RS-422 transceivers, configurable as half duplex or full duplex Integrated oscillator driver for external transformer ±15 kV ESD protection on RS-485 input/output pins C

PDF File Details

Part number:

ADM2482E

Manufacturer:

Analog Devices ↗

File Size:

534.10kb

Download:

📄 Datasheet

Description:

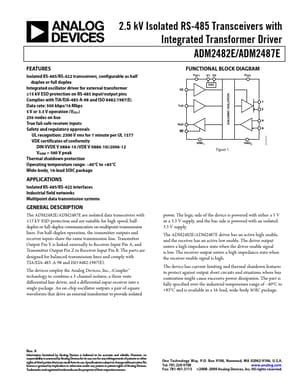

2.5 kv isolated rs-485 transceivers. The ADM2482E/ADM2487E are isolated data transceivers with ±15 kV ESD protection and are suitable for high speed, halfduplex or full-d

ADM2482E Application

• Applications Isolated RS-485/RS-422 interfaces Industrial field networks Multipoint data transmission systems GENERAL DESCRIPTION The ADM2482E/ADM24
