ADM2484E

Isolated RS-485 Transceiver

Analog Devices

ADM2484E Features

* Isolated, RS-485/RS-422 transceiver, configurable as half- or full-duplex

* ±15 kV ESD protection on RS-485 input/output pins

* 500 kbps data rate

* Complies with ANSI TIA/EIA RS-485-A-1998 and ISO 8482: 1987(E)

* Suitable for 5 V or 3.3 V operation (VDD1)

* High common-mod

ADM2484E General Description

The ADM2484E is an isolated data transceiver with ±15 kV ESD protection suitable for high speed, half- or full-duplex communication on multipoint transmission lines. For half-duplex operation, the transmitter outputs and receiver inputs share the same transmission line. Transmitter Output Pin Y link.

ADM2484E Datasheet (601.21 KB)

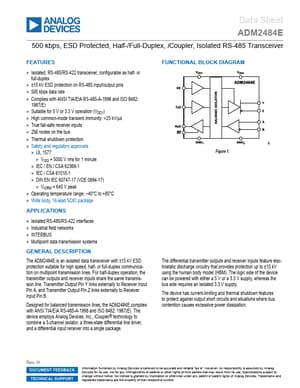

ADM2484E Datasheet Preview — Preview of ADM2484E PDF

Datasheet Details

Part number:

ADM2484E

Manufacturer:

Analog Devices ↗

File Size:

601.21 KB

Description:

Isolated rs-485 transceiver.
