ADM2483

Half-Duplex iCoupler Isolated RS-485 Transceiver

ADM2483 Features

* RS-485 transceiver with electrical data isolation Complies with ANSI TIA/EIA RS-485-A and ISO 8482: 1987(E) 500 kbps data rate Slew rate-limited driver outputs Low power operation: 2.5 mA max Suitable for 5 V or 3 V operations (VDD1) High common-mode transient immunity: >25 kV/μs True fail-safe rece

ADM2483 General Description

The ADM2483 differential bus transceiver is an integrated, galvanically isolated component designed for bidirectional data communication on balanced, multipoint bus transmission lines. It complies with ANSI EIA/TIA-485-A and ISO 8482: 1987(E). Using the iCoupler technology from Analog Devices, Inc.,.

ADM2483 Datasheet (394.22 KB)

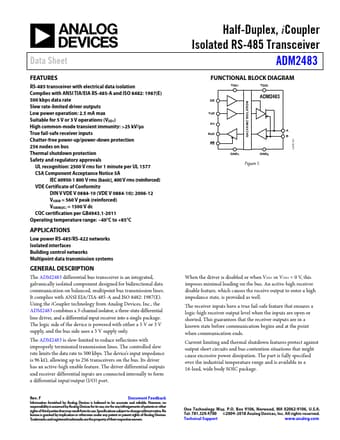

Preview of ADM2483 PDF

Datasheet Details

Part number:

ADM2483

Manufacturer:

Analog Devices ↗

File Size:

394.22 KB

Description:

Half-duplex icoupler isolated rs-485 transceiver.
