ADM2485 Datasheet - Analog Devices

ADM2485 High Speed Isolated RS-485 Transceiver

The ADM2485 differential bus transceiver is an integrated, galvanically isolated component designed for bidirectional data communica.

ADM2485 Features

* Half-duplex, isolated RS-485 transceiver Integrated oscillator driver for external transformer PROFIBUS® compliant Complies with ANSI/TIA/EIA RS-485-A-98 and ISO 8482:1987(E) Data rate: 16 Mbps 5 V or 3.3 V operation (VDD1) 50 nodes on bus High common-mode transient immunity: >25 kV/μs Isolated DE O

ADM2485_AnalogDevices.pdf

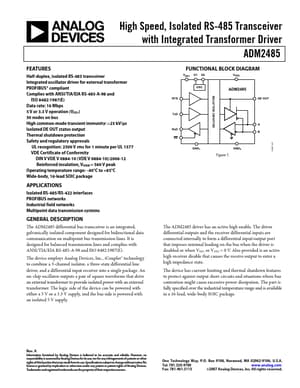

Preview of ADM2485 PDF
ADM2485 Datasheet Preview Page 2 ADM2485 Datasheet Preview Page 3

Datasheet Details

Part number:

ADM2485

Manufacturer:

Analog Devices ↗

File Size:

563.17 KB

Description:

High speed isolated rs-485 transceiver.
