ADP5070 DC-to-DC Switching Regulator

ADP5070 Description

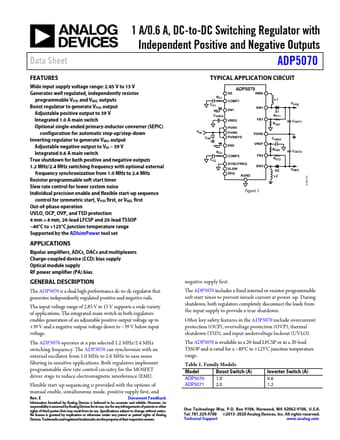

Data Sheet 1 A/0.6 A, DC-to-DC Switching Regulator with Independent Positive and Negative Outputs ADP5070 .
The ADP5070 is a dual high performance dc-to-dc regulator that generates independently regulated positive and negative rails.

ADP5070 Features

* Wide input supply voltage range: 2.85 V to 15 V Generates well regulated, independently resistor programmable VPOS and VNEG outputs Boost regulator to generate VPOS output Adjustable positive output to 39 V Integrated 1.0 A main switch Optional single-ended primary-inductor converter (SEPIC) config
