ADP5075 Datasheet, Regulator, Analog Devices

ADP5075 Features

  • Regulator Wide input voltage range: 2.85 V to 15 V Adjustable negative output to VIN
  • 39 V Integrated 800 mA main switch 1.2 MHz/2.4 MHz switching frequency with optional external freque

PDF File Details

Part number:

ADP5075

Manufacturer:

Analog Devices ↗

File Size:

645.32kb

Download:

📄 Datasheet

Description:

Dc-to-dc inverting regulator. The ADP5075 is a high performance dc-to-dc inverting regulator used to generate negative supply rails. The input voltage range of 2.8

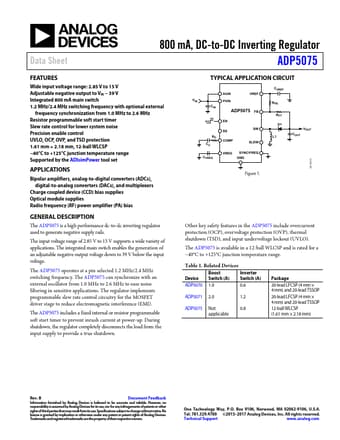

Datasheet Preview: ADP5075 📥 Download PDF (645.32kb)
Page 2 of ADP5075 Page 3 of ADP5075

ADP5075 Application

  • Applications Bipolar amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and multiplexers Charge coupled device (C
