ADP5071

DC-to-DC Switching Regulator

ADP5071 Features

* Wide input supply voltage range: 2.85 V to 15 V Generates well regulated, independently resistor programmable VPOS and VNEG outputs Boost regulator to generate VPOS output Adjustable positive output to 39 V Integrated 2.0 A main switch Optional single-ended primary-inductor converter (SEPIC) config

ADP5071 General Description

The ADP5071 is a dual high performance dc-to-dc regulator that generates independently regulated positive and negative rails. The input voltage range of 2.85 V to 15 V supports a wide variety of applications. The integrated main switch in both regulators enables generation of an adjustable positive.

ADP5071 Datasheet (0.99 MB)

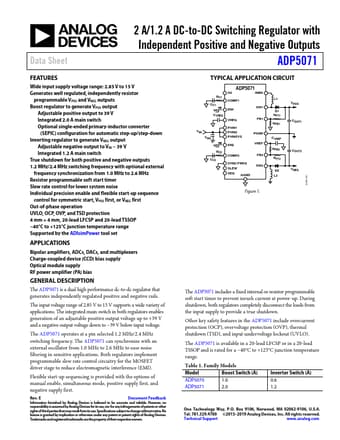

Preview of ADP5071 PDF

Datasheet Details

Part number:

ADP5071

Manufacturer:

Analog Devices ↗

File Size:

0.99 MB

Description:

Dc-to-dc switching regulator.
