ADP5073 Datasheet, Regulator, Analog Devices

ADP5073 Features

  • Regulator Wide input voltage range: 2.85 V to 15 V Adjustable negative output to VIN
  • 39 V Integrated 1.2 A main switch 1.2 MHz/2.4 MHz switching frequency with optional external frequen

PDF File Details

Part number:

ADP5073

Manufacturer:

Analog Devices ↗

File Size:

502.27kb

Download:

📄 Datasheet

Description:

Dc-to-dc inverting regulator. The ADP5073 is a high performance dc-to-dc inverting regulator used to generate negative supply rails. The input voltage range of 2.8

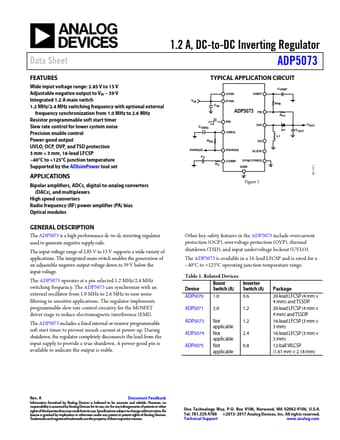

Datasheet Preview: ADP5073 📥 Download PDF (502.27kb)
Page 2 of ADP5073 Page 3 of ADP5073

ADP5073 Application

  • Applications Bipolar amplifiers, ADCs, digital-to-analog converters (DACs), and multiplexers High speed converters Radio frequency (RF) power amplif
