ADP5074 DC-to-DC Inverting Regulator

The ADP5074 is a high performance dc-to-dc inverting regulator used to generate negative supply rails. The input voltage range of 2.85 V to 15 V supports a wide variety of applications. The integrated main switch enables the generation of an adjustable negative output voltage down to 39 V below the .

ADP5074 Features

* Wide input voltage range: 2.85 V to 15 V Adjustable negative output to VIN

* 39 V Integrated 2.4 A main switch 1.2 MHz/2.4 MHz switching frequency with optional external frequency synchronization from 1.0 MHz to 2.6 MHz Resistor programmable soft start timer Slew rate control for lower syste

ADP5074-AnalogDevices.pdf

Preview of ADP5074 PDF

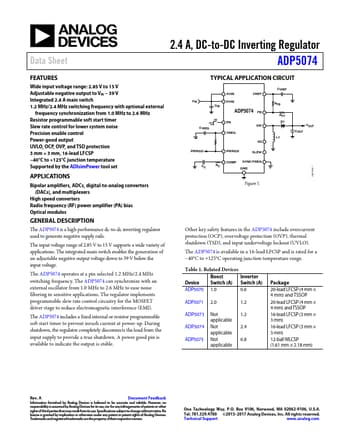

ADP5074 Datasheet Preview Page 2 ADP5074 Datasheet Preview Page 3

Datasheet Details

Part number:

ADP5074

Manufacturer:

Analog Devices ↗

File Size:

513.78 KB

Description:

Dc-to-dc inverting regulator.
