HMC598 Datasheet - Analog Devices

GaAs MMIC x2 ACTIVE FREQUENCY MULTIPLIER

HMC598 General Description

The HMC598 is a x2 active broadband frequency multiplier chip utilizing GaAs PHEMT technology. When driven by a +5 dBm signal, the multiplier provides +15 dBm typical output power from 22 to 46 GHz and the Fo and 3Fo isolations are 25 dBc and 15 dBc respectively at 30 GHz. The HMC598 is ideal for us.

HMC598 Datasheet (348.01 KB)

Preview of HMC598 PDF

Datasheet Details

Part number:

HMC598

Manufacturer:

Analog Devices ↗

File Size:

348.01 KB

Description:

Gaas mmic x2 active frequency multiplier.

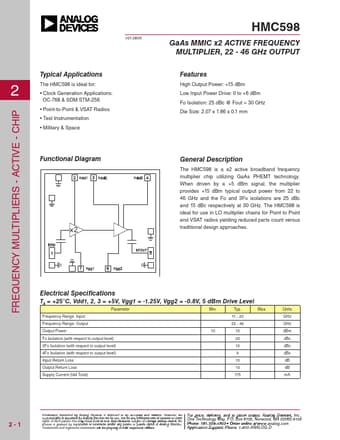

FREQUency MULTIPLIERS - Active - CHIP v01.0809 Typical Applications 2 The HMC598 is ideal for: Clock Generation Applications: OC-768 & SDM .
