HMC7911 - I/Q Upconverter

Product Overview

Analog Devices

Datasheet Details

Part number	HMC7911
Manufacturer	Analog Devices
File Size	490.58 KB
Description	I/Q Upconverter
Datasheet	HMC7911 Datasheet

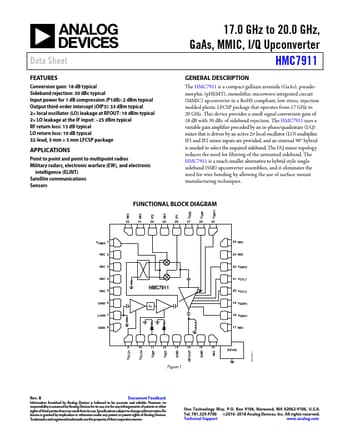

Additional preview pages of the HMC7911 datasheet.

Product details

Description

The HMC7911 is a compact gallium arsenide (GaAs), pseudomorphic (pHEMT), monolithic microwave integrated circuit (MMIC) upconverter in a RoHS compliant, low stress, injection molded plastic LFCSP package that operates from 17 GHz to 20 GHz.

Features

Conversion gain: 18 dB typical Sideband rejection: 30 dBc typical Input power for 1 dB compression (P1dB): 2 dBm typical Output third-order intercept (OIP3): 33 dBm typical 2× local oscillator (LO) leakage at RFOUT: 10 dBm typical 2× LO leakage at the IF input:.
25 dBm typical RF return loss: 13 dB typical LO return loss: 10 dB typical 32-lead, 5 mm × 5 mm LFCSP package.
