HMC795LP5E Datasheet, modulator equivalent, Analog Devices

HMC795LP5E Features

  • Modulator High Linearity OIP3: + 22 dBm High Output Power: +10 dBm Output P1dB High Carrier Suppression: 55 dBc High Sideband Suppression: 53 dBc Read/Write Serial Port Interface (SPI) SPI & 6-bi

PDF File Details

Part number:

HMC795LP5E

Manufacturer:

Analog Devices ↗

File Size:

1.69MB

Download:

📄 Datasheet

Description:

Sige wideband direct quadrature modulator. The HMC795LP5E is a variable gain, direct quadrature modulator ideal for digital modulation applications from 50 - 2800 MHz including

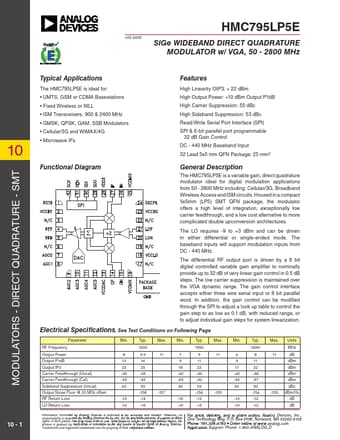

Datasheet Preview: HMC795LP5E 📥 Download PDF (1.69MB)
Page 2 of HMC795LP5E Page 3 of HMC795LP5E

HMC795LP5E Application

  • Applications The HMC795LP5E is ideal for:
  • UMTS, GSM or CDMA Basestations
  • Fixed Wireless or WLL
  • ISM Transceivers, 900 &
