HMC794LP3E Datasheet, Divider, Analog Devices

HMC794LP3E Features

  • Divider Low Noise Floor: -163 dBc/Hz at 10 MHz offset and -160 dBc/Hz at 100 kHz offset Programmable Frequency Divider, N = 1, 2, 3 or 4 200 MHz to 2 GHz Input Frequency Range 50% Duty Cycle Ou

PDF File Details

Part number:

HMC794LP3E

Manufacturer:

Analog Devices ↗

File Size:

769.14kb

Download:

📄 Datasheet

Description:

Low noise programmable divider. The HMC794LP3E is a SiGe BiCMOS low noise programmable frequency divider in a 3x3mm leadless surface mount package. The circuit can b

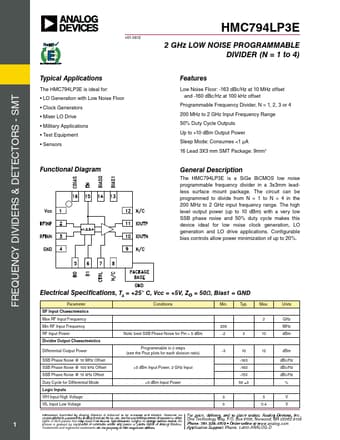

Datasheet Preview: HMC794LP3E 📥 Download PDF (769.14kb)
Page 2 of HMC794LP3E Page 3 of HMC794LP3E

HMC794LP3E Application

  • Applications The HMC794LP3E is ideal for:
  • LO Generation with Low Noise Floor
  • Clock Generators
  • Mixer LO Drive
