0.25 dB LSB GaAs MMIC 6-BIT DIGITAL ATTENUATOR

HMC792LP4E Features

* 0.25 dB LSB Steps to 15.75 dB Power-Up State Selection High Input IP3: +55 dBm Low Insertion Loss: 1.8 dB @ 2.0 GHz TTL/CMOS Compatible, Serial, Parallel or Latched Parallel Control ±0.2 dB Typical Step Error Single +3V or +5V Supply 24 Lead 4x4mm SMT Package: 16mm2 Functional Diagram General Desc

HMC792LP4E General Description

The HMC792LP4E is a broadband 6-bit GaAs IC Digital Attenuator in a low cost leadless SMT package. This versatile digital attenuator incorporates off-chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. The dual mode control interface is C.

HMC792LP4E Datasheet (443.83 KB)

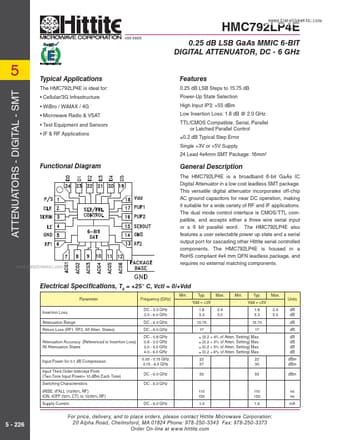

HMC792LP4E Datasheet Preview — Preview of HMC792LP4E PDF

Datasheet Details

Part number:

HMC792LP4E

Manufacturer:

Hittite Microwave Corporation

File Size:

443.83 KB

Description:

0.25 db lsb gaas mmic 6-bit digital attenuator.
HMC792LP4E v00.0609 0.25 dB LSB GaAs MMIC 6-BIT DIGITAL ATTENUATOR, DC - 6 GHz 5 ATTENUATORS - DIGITAL - SMT Typical Applications The HMC792LP4E is.
