HMC7950 Datasheet, amplifier equivalent, Analog Devices

HMC7950 Features

  • Amplifier
  • Output power for 1 dB compression (P1dB): 16 dBm typical
  • Saturated output power (PSAT): 19.5 dBm typical
  • Gain: 15 dB typical
  • Noise figure: 2.0 dB

PDF File Details

Part number:

HMC7950

Manufacturer:

Analog Devices ↗

File Size:

1.10MB

Download:

📄 Datasheet

Description:

Gaas phemt mmic low noise amplifier. The HMC7950 is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated ci

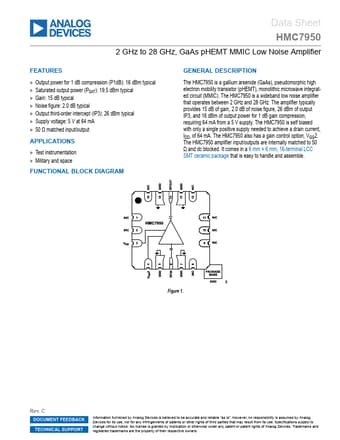

Datasheet Preview: HMC7950 📥 Download PDF (1.10MB)
Page 2 of HMC7950 Page 3 of HMC7950

HMC7950 Application

  • Applications
  • Test instrumentation
  • Military and space FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION The HMC7950 is a gallium arse
