HMC7912 - I/Q Upconverter

Product Overview

📥 Download Datasheet

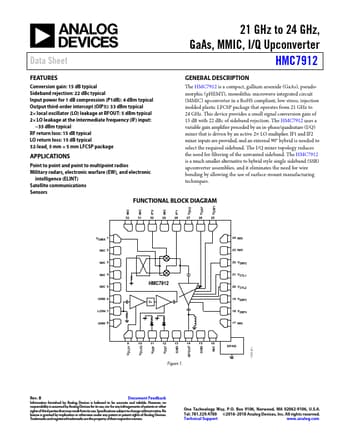

Datasheet preview – HMC7912

Datasheet Details

Part number HMC7912
Manufacturer Analog Devices
File Size 545.84 KB
Description I/Q Upconverter
Datasheet download datasheet HMC7912 Datasheet
Additional preview pages of the HMC7912 datasheet.

Product details

Description

Conversion gain: 15 dB typical Sideband rejection: 22 dBc typical Input power for 1 dB compression (P1dB): 4 dBm typical Output third-order intercept (OIP3): 33 dBm typical 2× local oscillator (LO) leakage at RFOUT: 5 dBm typical 2× LO leakage at the intermediate frequency (IF) input: 35 dBm typical RF return loss: 15 dB typical LO return loss: 15 dB typical 32-lead, 5 mm × 5 mm LFCSP package APPLICATIONS Point to point and point to multipoint radios Military radars, electronic warfare
