AZ10LVE111, AZ100LVE111 - ECL/PECL 1:9 Differential Clock Driver

AZ10LVE111 Description

www.DataSheet4U.com ARIZONA MICROTEK, INC.AZ10LVE111 AZ100LVE111 ECL/PECL 1:9 Differential Clock Driver .
Add R2 at end of part number for 13 inch (750 parts) Tape & Reel.

AZ10LVE111 Features

* PACKAGE AVAILABILITY
* Operating Range of 3.0V to 5.5V Low Skew Guaranteed Skew Spec Differential Design VBB Output 75kΩ Internal Pulldown Resistors Direct Replacement for ON Semiconductor MC100LVE111 PACKAGE PLCC 28 PART NO. AZ10L

AZ10LVE111 Applications

* the VBB reference should be connected to one side of the IN/IN ¯¯ differential input pair. The input signal is then fed to the other IN/IN ¯¯ input. When used, the VBB pin should be bypassed to ground via a 0.01μF capacitor. The device is specifically designed, modeled and produced with low skew as

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AZ10LVE111, AZ100LVE111. Please refer to the document for exact specifications by model.

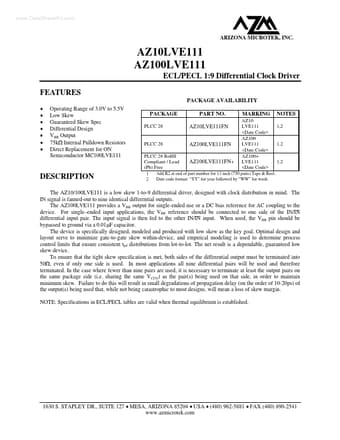

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ10LVE111, AZ100LVE111
Manufacturer
Arizona Microtek
File Size
110.69 KB
Datasheet
AZ100LVE111_ArizonaMicrotek.pdf
Description
ECL/PECL 1:9 Differential Clock Driver
Note
This datasheet PDF includes multiple part numbers: AZ10LVE111, AZ100LVE111.
Please refer to the document for exact specifications by model.
