AZ10LVEL16, AZ100LVEL16 - ECL/PECL Differential Receiver

AZ10LVEL16 Description

www.DataSheet4U.com AZ10LVEL16 AZ100LVEL16 .
Add R1 at end of part number for 7 inch (1K parts), R2 for 13 inch (2.

AZ10LVEL16 Features

* 250ps Propagation Delay High Bandwidth Output Transitions Operating Range of 3.0V to 5.5V Internal Input Pulldown Resistors Direct Replacement For ON Semiconductor MC10EL16, MC100EL16, & MC100LVEL16 PACKAGE SOIC 8 SOIC 8 TSSOP 8 TSSOP 8 RoHS Complian

AZ10LVEL16 Applications

* the VBB reference should be connected to one side of the D/D differential input pair. The input signal is then fed to the other D/D ¯ input. The VBB pin can support 1.5 mA sink/source current. When used, the VBB pin should be bypassed to ground via a 0.01 µF capacitor. Under open input conditions i

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AZ10LVEL16, AZ100LVEL16. Please refer to the document for exact specifications by model.

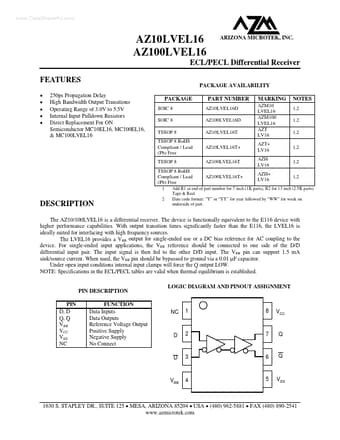

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ10LVEL16, AZ100LVEL16
Manufacturer
Arizona Microtek
File Size
104.32 KB
Datasheet
AZ100LVEL16_ArizonaMicrotek.pdf
Description
ECL/PECL Differential Receiver
Note
This datasheet PDF includes multiple part numbers: AZ10LVEL16, AZ100LVEL16.
Please refer to the document for exact specifications by model.
