AZ10LVEL32, AZ100LVEL32 - ECL/PECL / 2 Divider

AZ10LVEL32 Description

www.DataSheet4U.com ARIZONA MICROTEK, INC.AZ10LVEL32 AZ100LVEL32 .
The AZ10/100LVEL32 is an integrated ÷2 divider.

AZ10LVEL32 Features

* Operating Range of 3.0V to 5.5V 470ps Propagation Delay 3.0GHz Toggle Frequency High Bandwidth Output Transitions Direct Replacement for ON Semiconductor MC10EL/LVEL32 & MC100EL/LVEL32 PACKAGE SOIC 8 Green / RoHS Compliant / Lead (Pb) Free TSSOP 8 Gr

AZ10LVEL32 Applications

* the VBB reference should be connected to one side of the CLK/CLK ¯¯¯¯ differential input pair. The input signal is then fed to the other CLK/CLK ¯¯¯¯ input. The VBB pin should be used only as a bias for the LVEL32 as its sink/source capability is limited. When used, the VBB pin should be bypassed t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AZ10LVEL32, AZ100LVEL32. Please refer to the document for exact specifications by model.

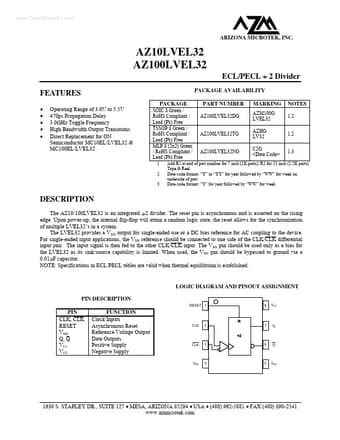

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ10LVEL32, AZ100LVEL32
Manufacturer
Arizona Microtek
File Size
203.99 KB
Datasheet
AZ100LVEL32_ArizonaMicrotek.pdf
Description
ECL/PECL / 2 Divider
Note
This datasheet PDF includes multiple part numbers: AZ10LVEL32, AZ100LVEL32.
Please refer to the document for exact specifications by model.
