AZ10LVEL16VS, AZ100LVEL16VS - ECL/PECL Differential Receiver

AZ10LVEL16VS Description

www.DataSheet4U.com ARIZONA MICROTEK, INC.AZ10LVEL16VS AZ100LVEL16VS ECL/PECL Differential Receiver with Variable Output Swing .
2 Add R1 at end of part number for 7 inch (1K parts), R2 for 13 inch (2.

AZ10LVEL16VS Features

* 250ps Propagation Delay High Bandwidth Output Transitions Operating Range of 3.0V to 5.5V Internal Input Pulldown Resistors Functionally Equivalent to ON Semiconductor MC10EL16, MC100EL16 & MC100LVEL16 Variable Output Swing PACKAGE SOIC 8 S

AZ10LVEL16VS Applications

* the VBB reference should be connected to one side of the D/D ¯ differential input pair. The input signal is then fed to the other D/D ¯ input. The VBB pin can support 1.5mA sink/source current. When used, the VBB pin should be bypassed to ground via a 0.01μF capacitor. Under open input conditions i

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AZ10LVEL16VS, AZ100LVEL16VS. Please refer to the document for exact specifications by model.

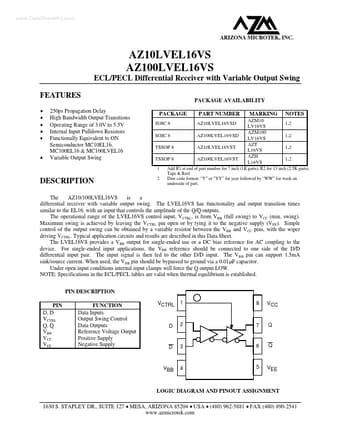

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ10LVEL16VS, AZ100LVEL16VS
Manufacturer
Arizona Microtek
File Size
127.17 KB
Datasheet
AZ100LVEL16VS_ArizonaMicrotek.pdf
Description
ECL/PECL Differential Receiver
Note
This datasheet PDF includes multiple part numbers: AZ10LVEL16VS, AZ100LVEL16VS.
Please refer to the document for exact specifications by model.
