AZ10LVE111E, AZ100LVE111E - ECL/PECL 1:9 Differential Clock Driver

AZ10LVE111E Description

www.DataSheet4U.com ARIZONA MICROTEK, INC.AZ10LVE111E AZ100LVE111E ECL/PECL 1:9 Differential Clock Driver with Enable .
The AZ10/100LVE111E is a low skew 1-to-9 differential driver, designed with clock distribution in mind.

AZ10LVE111E Features

* Operating Range of 3.0V to 5.5V Low Skew Guaranteed Skew Spec Differential Design Enable VBB Output 75kΩ Internal Input Pulldown Resistors Direct Replacement for ON Semiconductor MC10E111 & MC100E111 PACKAGE PLCC 28 PAC

AZ10LVE111E Applications

* the VBB reference should be connected to one side of the IN/IN ¯¯ differential input pair. The input signal is then fed to the other IN/IN ¯¯ input. The VBB pin should be used only as a bias for the AZ100LVE111E as its current sink/source capability is limited. When used, the VBB pin should be bypa

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AZ10LVE111E, AZ100LVE111E. Please refer to the document for exact specifications by model.

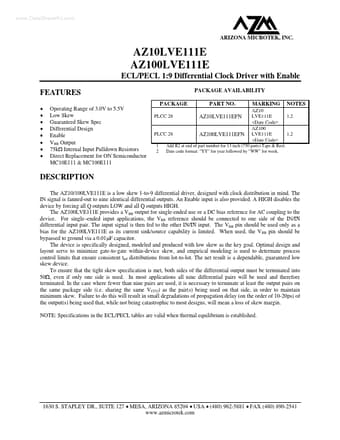

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ10LVE111E, AZ100LVE111E
Manufacturer
Arizona Microtek
File Size
129.77 KB
Datasheet
AZ100LVE111E_ArizonaMicrotek.pdf
Description
ECL/PECL 1:9 Differential Clock Driver
Note
This datasheet PDF includes multiple part numbers: AZ10LVE111E, AZ100LVE111E.
Please refer to the document for exact specifications by model.
