TK10690M - Compressor/Expander

TK10690M Description

Compressor / Expander IC / IC TK10690M, TK10691M .
TK10690M is a compressor IC and TK1069M is an expander IC, each of them is suitable IC for one way wireless communication of microphones, headsets and.

TK10690M Features

* Excellent frequency response: BW=20kHz
* Wide dynamic range: typ=100dB
* Low operating voltage
* High space mounting

TK10690M Applications

* Wireless microphone
* Wireless headset
* Hearing aid (TK10690M)
* Others
* PACKAGE OUTLINE Part name Package type Device name Suffix TK10690 M SOP-8 TK10691 Outline ORDERING INFORMAION T K 1 0 6 9 Number 0, 1 Package code

📥 Download Datasheet

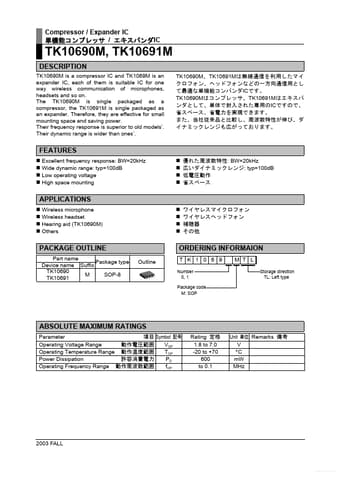

Preview of TK10690M PDF
datasheet Preview Page 2

Datasheet Details

Part number
TK10690M
Manufacturer
Asahi
File Size
176.10 KB
Datasheet
TK10690M-Asahi.pdf
Description
Compressor/Expander
