AP2204 - WIDE INPUT VOLTAGE RANGE 150mA ULDO REGULATOR

AP2204 Description

WIDE INPUT VOLTAGE RANGE, 150mA ULDO REGULATOR General .
Features Data Sheet AP2204 The AP2204 series is a positive voltage regulator IC. Wide Input Voltage Range: 2.

AP2204 Features

* Data Sheet AP2204 The AP2204 series is a positive voltage regulator IC
* Wide Input Voltage Range: 2.3V to 24V fabricated by high voltage EPNP process.
* Wide Output Voltage Range: 1.24V to 22V
* Excellent Ripple Rejection: 60dB@ f=1kHz The AP2204 has features of wide input voltage

AP2204 Applications

* Battery-powered Equipment
* Laptop, Palmtops, Notebook Computers

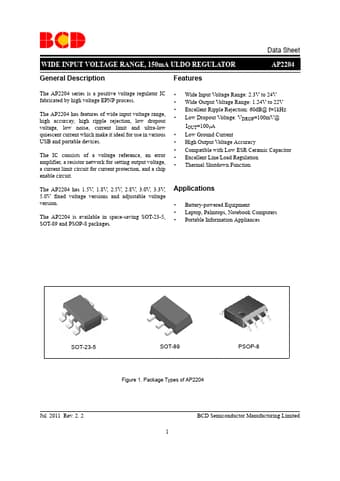

* Portable Information Appliances SOT-23-5 SOT-89 Figure 1. Package Types of AP2204 PSOP-8 Jul 2011 Rev. 2. 2 BCD Semiconductor Manufacturing Limited 1 WIDE INPUT VOLTAGE RANGE, 150mA ULDO REGULATOR Pin Configurati
