2SC2275A, 2SC2275 Silicon NPN transistor

2SC2275A Description

2SC2275(A) Rev.F Mar.-2016 DATA SHEET / .
TO-220F NPN 。Silicon NPN transistor in a TO-220F Plastic Package.

2SC2275A Applications

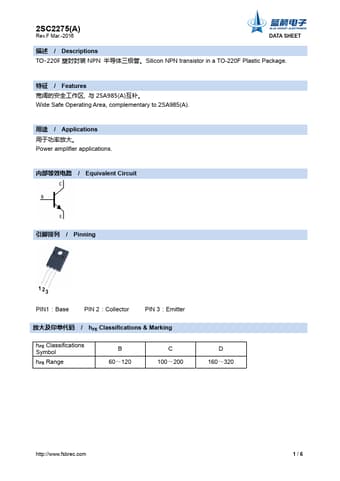

* 。 Power amplifier applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range B 60～120 C 100～200 D 160～320 http://www. fsbrec. com 1/6 2SC2275(A) Rev. F Mar. -2016 / Absolute Maximum Ra
