MG12232-01 Datasheet - BONA

MG12232-01 LCD

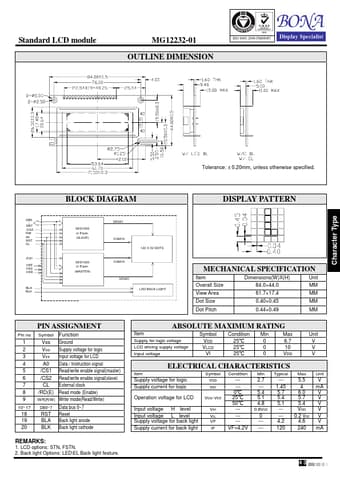

Standard LCD module MG12232-01 OUTLINE DIMENSION ISO 9001:2000 FM86067 Character Type Tolerance: ± 0.20mm, unless otherwise specified. BLOCK DIAGRAM DISPLAY PATTERN DB0 ~ DB7 /CS2 RW A0 RST CL SED1520 or Equiv. (SLAVE) SEG61 COM16 122 X 32 DOTS /CS1 VEE VSS VDD SED1520 or Equiv. (MASTER) COM16 MECHANICAL SPECIFICATION SEG61 Item Dimensions(W)X(H) Unit Overall Size 84.0×44.0 MM BLA BLK LED BACK LIGHT View Area 61.7×17.4 MM Dot Size 0.40×0.45 MM Dot Pitch 0.44×0.49 .

MG12232-01-BONA.pdf

MG12232-01 Datasheet Preview — Preview of MG12232-01 PDF

Datasheet Details

Part number:

MG12232-01

Manufacturer:

BONA

File Size:

100.23 KB

Description:

Lcd.
