MG12232-12 - LCD

BONA

Datasheet Details

Part number	MG12232-12
Manufacturer	BONA
File Size	100.10 KB
Description	LCD
Datasheet	MG12232-12 Datasheet
Additional preview pages of the MG12232-12 datasheet.

📁 Similar Datasheet

MG12200D-BN2MM - IGBT (Littelfuse)
MG12225WB-BN2MM - IGBT (Littelfuse)
MG1225H-XN2MM - IGBT (Littelfuse)
MG1200FXF1US51 - TOSHIBA GTR Module Silicon N-Channel IGBT (Toshiba)
MG1200V1US51 - TOSHIBA GTR MODULE SILICON N−CHANNEL IGBT (Toshiba)
MG120R040 - N-CHANNEL Enhancement Silicon Carbide MOSFET (JILIN SINO)
MG120R080 - N-CHANNEL Enhancement Silicon Carbide MOSFET (JILIN SINO)
MG120V2YS40 - N-Channel IGBT (Toshiba)
MG1231A-C - SEVEN SEGMENT NUMERIC DISPLAY (Micro)
MG1250S-BA1MM - IGBT (Littelfuse)

Other Datasheets by BONA

MG12232-11 - LCD
MG12232-01 - LCD
MG12032-01 - LCD
MG128128-01 - LCD
MG12832-01 - LCD
MG12864-01 - Standard LCD
MG12864-02 - Standard LCD
MG12864-03 - LCD

Full PDF Text Transcription

Click to expand full text

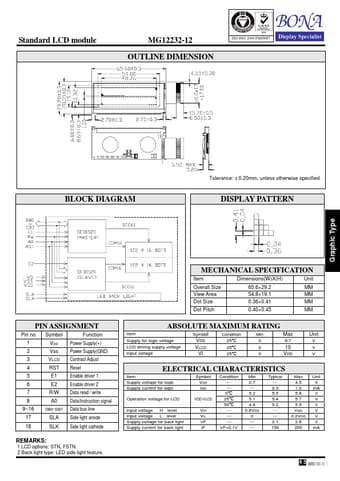

Standard LCD module MG12232-12 OUTLINE DIMENSION ISO 9001:2000 FM86067 Graphic Type BLOCK DIAGRAM Tolerance: ± 0.20mm, unless otherwise specified. DISPLAY PATTERN PIN ASSIGNMENT Pin no 1 2 3 4 5 6 7 8 9~16 17 18 Symbol VDD Vss VLCD RST E1 E2 R/W A0 DB0~DB7 SLA SLK Function Power Supply(+) Power Supply(GND) Contrast Adjust Reset Enable driver 1 Enable driver 2 Data read / write Data/Instruction signal Data bus line Side light anode Side light cathode REMARKS: 1 LCD options: STN, FSTN. 2 Back light type: LED side light feature. MECHANICAL SPECIFICATION Item Dimensions(W)X(H) Unit Overall Size 65.6×29.2 MM View Area 54.8×19.1 MM Dot Size 0.36×0.41 MM Dot Pitch 0.40×0.

Published: Apr 21, 2017 |
