MG12032-01 Datasheet - BONA

MG12032-01 LCD

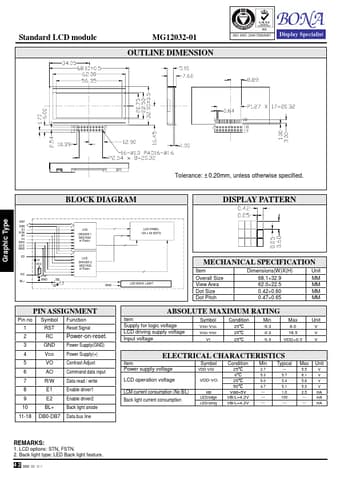

Standard LCD module MG12032-01 OUTLINE DIMENSION ISO 9001:2000 FM86067 Graphic Type 10K Tolerance: ± 0.20mm, unless otherwise specified. BLOCK DIAGRAM DISPLAY PATTERN DB7 DB0 E1 R/W A0 Vo RES VCC GND E2 RC BL+ J4 VCC 47nF GND R8 J2 LCD DRIVER 1 SED1520 or Equiv. LCD DRIVER 2 SED1520 or Equiv. GND PIN ASSIGNMENT Pin no Symbol Function 1 RST Reset Signal 2 RC Power-on-reset. 3 GND Power Supply(GND) 4 VDD Power Supply(+) 5 VO Contrast Adjust 6 AO Command data input 7 R/W Data read / wri.

MG12032-01 Datasheet (100.29 KB)

MG12032-01 Datasheet Preview — Preview of MG12032-01 PDF

Datasheet Details

Part number:

MG12032-01

Manufacturer:

BONA

File Size:

100.29 KB

Description:

Lcd.
