MG12232-11 Datasheet - BONA

MG12232-11 LCD

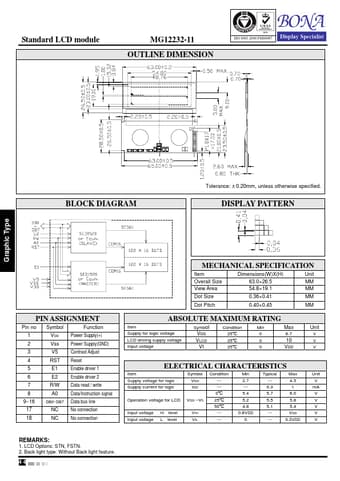

Standard LCD module MG12232-11 OUTLINE DIMENSION ISO 9001:2000 FM86067 Graphic Type BLOCK DIAGRAM Tolerance: ± 0.20mm, unless otherwise specified. DISPLAY PATTERN PIN ASSIGNMENT Pin no Symbol Function 1 VDD Power Supply(+) 2 Vss Power Supply(GND) 3 V5 Contrast Adjust 4 RST Reset 5 E1 Enable driver 1 6 E2 Enable driver 2 7 R/W Data read / write 8 A0 Data/Instruction signal 9~16 17 18 DB0~DB7 NC NC Data bus line No connection No connection MECHANICAL SPECIFICATION Item Dimensi.

MG12232-11 Datasheet (100.87 KB)

MG12232-11 Datasheet Preview — Preview of MG12232-11 PDF

Datasheet Details

Part number:

MG12232-11

Manufacturer:

BONA

File Size:

100.87 KB

Description:

Lcd.
