PDB24 - 24mm Rotary Potentiometer

Product Overview

BOURNS

Part number	PDB24
Manufacturer	BOURNS
File Size	317.26 KB
Description	24mm Rotary Potentiometer
Datasheet	PDB24 Datasheet

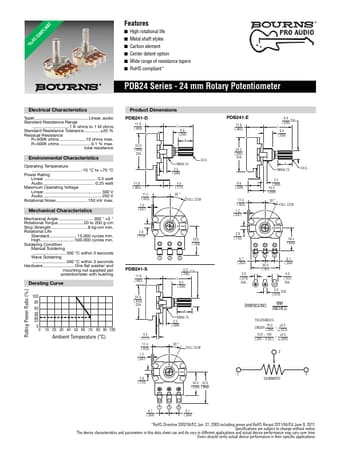

Additional preview pages of the PDB24 datasheet.

High rotational life.
Metal shaft styles.
Carbon element.
Center detent option.
Wide range of resistance tapers.
RoHS compliant.
PDB24 Series - 24 mm Rotary Potentiometer Rating Power Ratio (%) Electrical Characteristics Taper Linear, audio Standard Resistance Range 1 K ohms to 1 M ohms Standard Resistance Tolerance±20 % Residual Resistance R500K ohms 0.1 % max. total resistance Environmental Characteristics Operating Temperature -1.
